Ảnh sản phẩm thuộc về PNLAB

Thông tin chi tiết sản phẩm

Tên sản phẩm:

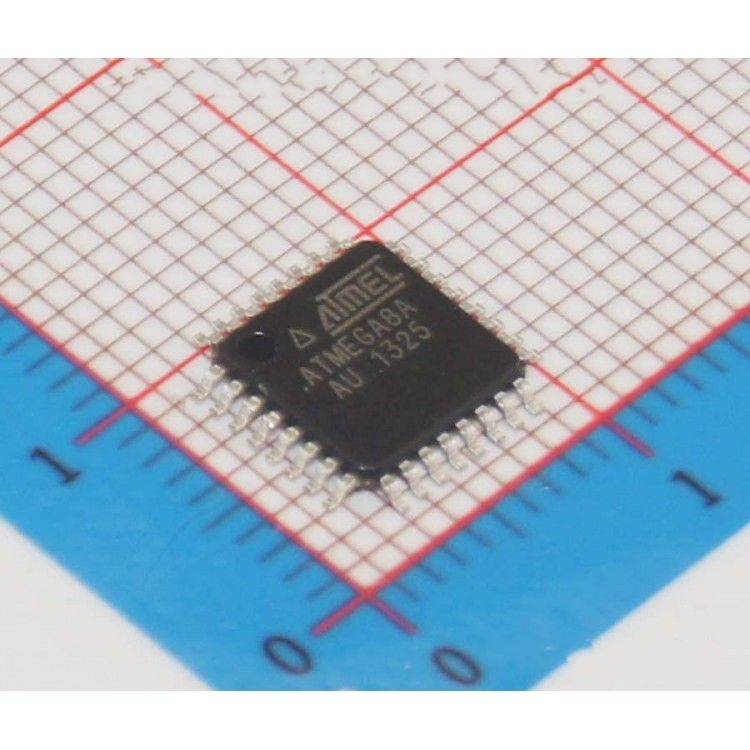

ATMEGA8A-AU

Giá:

21.500

Tình trạng:

Liên hệ

Xuất xứ:

Chính Hãng

Hãng sản xuất:

Atmel

Mã sản phẩm:

ATMEGA8A-AU

21.500

21.500 1+ units
20.000 10+ units
18.000 100+ units

Features:

Product Name: ATMEGA8A-AU
SN: ATMEGA8A-AU
Product Number: SP-C16190
Footprint: TQFP-32A
ATmega8A
Flash (Kbytes): 8
Pin Count: 32
Max. Operating Frequency: 16
CPU: 8-bit AVR
# of Touch Channels: 12
Hardware QTouch Acquisition: No
Max I/O Pins: 23
Ext Interrupts: 2
USB Speed: No
USB Interface: No
SPI: 1
TWI (I2C): 1
UART: 1
CAN: 0
LIN: 0
Ethernet: 0
Graphic LCD: No
Video Decoder: No
Camera Interface: No
ADC channels: 8
ADC Resolution (bits): 10
ADC Speed (ksps): 15
Analog Comparators: 1
Resistive Touch Screen: No
DAC Resolution (bits): 0
Temp. Sensor: No
Crypto Engine: No
SRAM (Kbytes): 1
EEPROM (Bytes): 512
Self Program Memory: YES
External Bus Interface: 0
DRAM Memory: No
NAND Interface: No
picoPower: No
Temp. Range (deg C): -40 to 85
I/O Supply Class: 2.7 to 5.5
Operating Voltage (Vcc): 2.7 to 5.5
FPU: No
MPU / MMU: no / no
Timers: 3
PWM Channels: 3
32kHz RTC: Yes
Calibrated RC Oscillator: Yes
Watchdog: Yes
Packages: MLF (VQFN) 32M1-A 32,PDIP 28P3 28,TQFP 32A 32

Dataheet: Download Datasheet
