Ảnh sản phẩm thuộc về PNLAB

Thông tin chi tiết sản phẩm

Tên sản phẩm:




Tình trạng:

Liên hệ

Xuất xứ:

Chính Hãng

Hãng sản xuất:


Mã sản phẩm:



400.000 1+ units
390.000 10+ units
380.000 100+ units



Ordering Information

Part Number Package Order Online

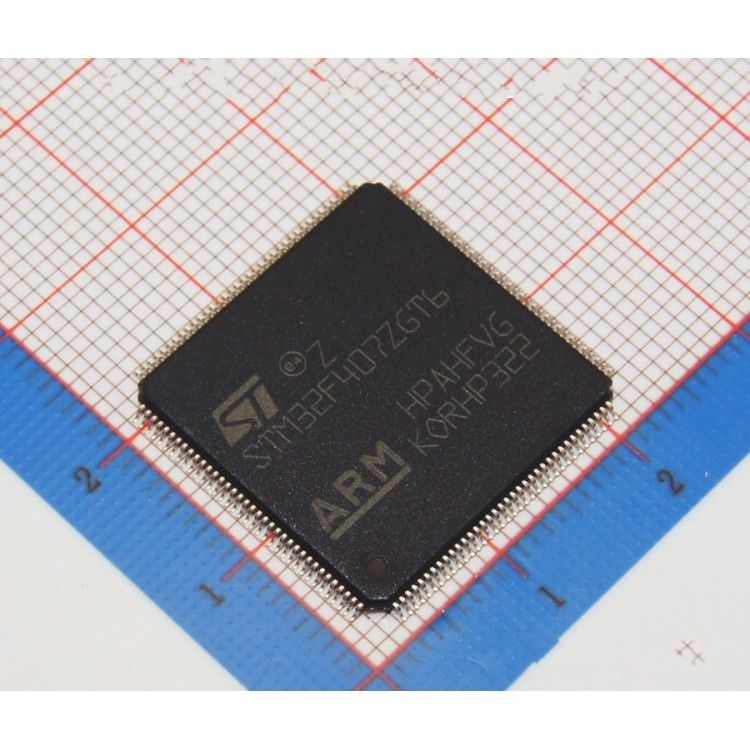

STM32F407ZGT6  LQFP144
STM32F407ZG PDF Datasheet

Pin Configurations

(Click on the image to enlarge)

STM32F407ZG Description

The STM32F407ZG family is based on the high-performance ARM®Cortex™-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F407ZG family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All the STM32F407ZG devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true number random generator (RNG). They also feature standard and advanced communication interfaces.

STM32F407ZG Applications

  • Motor drive and application control
  • Medical equipment
  • Industrial applications: PLC, inverters, circuit breakers
  • Printers, and scanners
  • Alarm systems, video intercom, and HVAC
  • Home audio appliances
