Thông tin chi tiết sản phẩm

Tên sản phẩm:

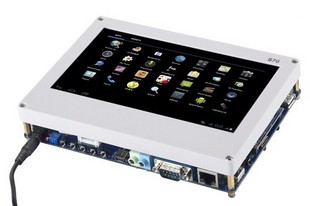

Smart210sdk+7" TFT Cortex-A8

Giá:

3.000.000

Tình trạng:

2

Xuất xứ:

China

Hãng sản xuất:

Friendly

Mã sản phẩm:

PN-210R

3.000.000

3.000.000 1+ units
2.900.000 10+ units
2.800.000 100+ units

Giảm 5% khoá học lập trình nhúng khi mua hàng tại pnlab chi tiết khoá học tại đây



Tiny210 core board
Introduction

Tiny210 is a high performance Cortext-A8 core board, from Guangzhou, a friendly arm design, production and distribution sales. It uses Samsung S5PV210 as the main processor, running at up to 1GHz. Integrated PowerVR SGX540 S5PV210 internal high-performance graphics engine, support for 3D graphics run smoothly, and can be smooth to play 1080P video of the large size.

Mainly using the tiny210 double-pin 2.0mm pitch, leads to the CPU the most common functional pin, and seeks to Tiny6410 core board three rows of pin-compatible (P1, P2, and the CON2); also features the S5PV210 chips, respectively, leads to the standard miniHDMI interface, and 1.0mm pitch SMD CON1 Block (51Pin), as shown above.

Tiny210 onboard 512M DDR2 memory, and can smoothly run advanced operating system, Android, Linux and WinCE6.It is ideal for the development of high-end Internet of Things, advertising, multimedia terminal, smart home, high-end surveillance system, video game control panel device.
Hardware configuration

CPU processor
  • The samsung S5PV210, based on the Cortex ™-A8, running at 1GHz
  • High-performance graphics engine built-in PowerVR SGX540
  • 2D/3D graphics acceleration to support the smooth
  • Supports up to 1080p @ 30fps hardware decoding and smooth video playback, the format can be MPEG4, H.263, H.264,
  • Supports up to 1080p @ 30fps the hardware encoding (Mpeg-2/VC1,) video input
DDR2 RAM memory
  • Size: 512MB
  • 32bit data bus, single-channel
  • Operating frequency: 200MHz
FLASH memory
  • The SLC of NAND Flash: 256MB
Interface resources
  • 2 x 60 Pin 2.0mm space the DIP connector
  • 1 x 30 Pin 2.0mm space the DIP connector
  • 1 x 51 Pin 1.0mm space of SMD the connector
On-board resources
  • 4 x the User Leds (Green)
  • 1 x Power Led (Red)
  • Supply Voltage from 2V to 6V (support wake up from sleep mode)
PCB Size
  • Eight-storey-density circuit board, immersion gold process to produce
  • Size: 64 x 50 11 (mm)
Software support (see the detailed features described later)
  • Superboot-210
  • Android 2.3 + Linux-2.6.35
  • Android 4.0 (provisional Preview image file)
  • Linux-2.6.35 + Qtopia-2.2.0/Qt-4.4.3/Qt-4.7
  •  WindowsCE6
Develop reference backplane TinySDK2
Below is the Tiny210 development backplane, it is primarily for the convenience of users Tiny210 core board for the use of secondary development.





TinySDK main features
Serial Port: 4, 2 of them have been converted to RS232 DB9 Block leads through CON1, 2, 3, 4, Block leads to TTL level
Interrupt style keys: 8, leads CON7 Block, user-friendly extended use
RJ45 Ethernet port: NIC using DM9000AEP, 10/100M adaptive
Audio input and output: using the WM8960 professional audio chip, containing Class D amplifier on-board microphone, and supports HDMI audio and video synchronization output (exclusive)
  • USB Slave: 1 Road, the USB 2.0 specification
  • ADC input: 6, which AIN0 connected out resistance in the plate can be used to test
  • Buzzer: 1, control by the PWM0
  • EEPROM: AT24C08 (256 Byte) for I2C test
  • LCD interface: 4 LCD interface, support for front-line precision touch or capacitive touch support 3.5 "-19" full color TFT display
  • SDIO interface: used to connect the SD WiFi module and other
  • The CMOS Camera: used to connect CMOS camera
  • RTC clock: with a backup battery (according to different regions or time periods, mailing may remove the battery)
  • PCB layer: 2
  • PCB size: 180 x 130mm, can be easily fixed all kinds of LCD modules, especially the 7-inch LCD module
  • Power supply: DC-5V
