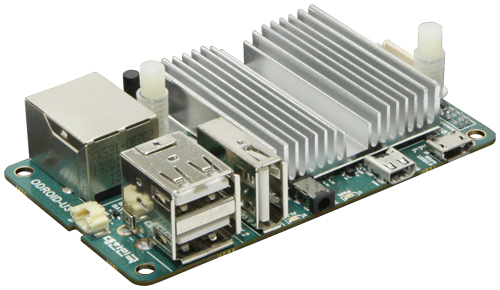

ODROID-U3

This is the standard ODROID-U3. The ODROID Magazine will give you the full guide for it. http://magazine.odroid.com/

All ODROID-U2 software is fully compatible with ODROID-U3.

KEY FEATURES

* The Powerful Linux Computer
* 1.7GHz Quad-Core processor and 2GByte RAM

* 10/100Mbps Ethernet with RJ-45 LAN Jack
* 3 x High speed USB2.0 Host ports
* Audio codec with headphone jack on board

* XUbuntu 13.10 or Android 4.x Operating System

* Size : 83 x 48 mm, Weight : 48g including heat sink

* Package includes the main board and the heat sink

FULL SCHEMATICS

ODROID_U3_Schematics_V02.pdf

BLOCK DIAGRAM

BOARD DETAIL

CPU	1.7GHz Exynos4412 Prime Cortex-A9 Quad-core processor with PoP (Package on Package) 2Gbyte LPDDR2 880Mega Data Rate
PMIC	MAX77686 Power Management IC from MAXIM
HSIC USB 2.0 Hub	USB3503A Integrated USB 2.0-compatible hub / HSIC upstream port from SMSC/Microchip
HSIC Ethernet controller	LAN9730HSIC USB 2.0 to 10/100 Ethernet controller with HP Auto-MDIX from SMSC/Microchip
Audio CODEC	MAX98090 is a full-featured and high performance audio CODEC from MAXIM
Protection IC	NCP372 Over-voltage, Over-current, Reverse-voltage protection IC from OnSemi.
USB Load switch	AP2411-MP-13 Protection IC for USB power supply from DIODES.
HDMI conditioner	IP4791CZ12 HDMI transmitter interface protector with level shifter from NXP
HDMI connector	Standard Micro-HDMI, supports up to 1920 x 1080 resolution
IO Port	USB Host x 3, Device x 1, Ethernet RJ-45, Headphone Jack
Storage Slot	Micro-SD slot, eMMC module connector
DC Input	5V / 2A input, Plug specification is inner diameter 0.8mm and outer diameter 2.5mm
