www.pnlabvn.com
Ảnh sản phẩm thuộc về PNLAB
Thông tin chi tiết sản phẩm |
|||
Tên sản phẩm: |

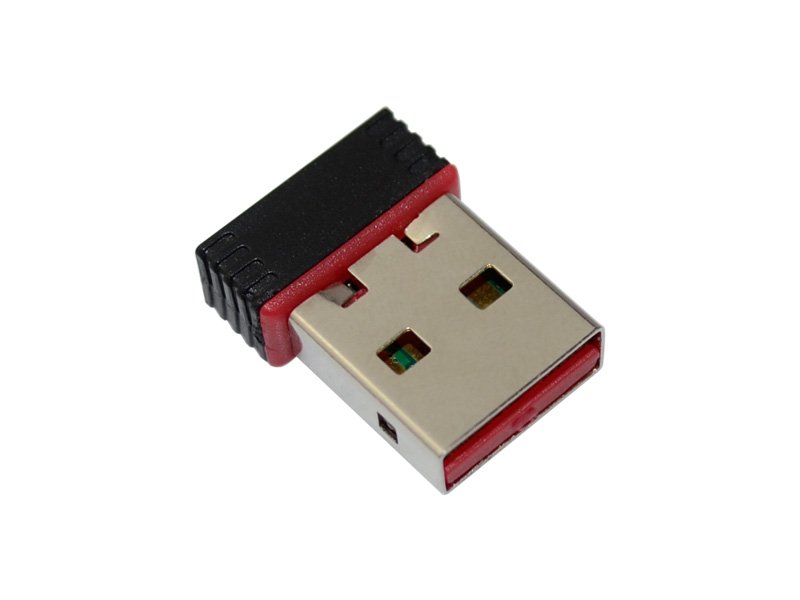

mini-USB-WIFI |
||
Giá: |
600.000 |
||
Tình trạng: |
2 |
||
Xuất xứ: |
China |
||
Hãng sản xuất: |
Đang cập nhật |
||
Mã sản phẩm: |
PN-miniwifi |
||
Features:
Chipset: Realtek 8188CU
Peak throughput: 150Mbps
Antenna: Integrated PCB antenna (1T1R)
Specification:
|
Wireless Standards
|
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
|
|
Host Interface
|
High speed USB2.0/1.1 interface
|
|
Data Rate
|
802.11n: up to 150Mbps (downlink) and 150Mbps (uplink)
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
|
|
Frequency Band
|
2.4GHz ISM (Industrial Scientific Medical) Band
|
|
Chipset
|
Realtek
|
|
RF Frequency
|
2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
|
|
Radio Channel
|
1 ~ 14 channels (Universal Domain Selection)
|
|
Range Coverage
|
Up to 3 times farther range than 802.11g
|
|
Antenna type
|
Integrated Antenna
|
|
Roaming
|
Full mobility and seamless roaming from cell to cell
|
|
RF Output Power
|
13 ~17 dBm (Typical)
|
|
Modulation
|
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
|
|
Data Security
|
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
|
|
Network
|
Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
|
|
Configuration & Management
|
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
|
|
Media Access Control
|
CSMA/CA with ACK
|
|
LED Indicator
|
Link/Active ( Green )
|
|
Operating System
|
Windows 2000, XP 32/64-bit, Vista 32/64-bit,
Linux and MAC OS X |
|
Environment
|
Operating Temperature: 0oC to 40oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
|
|
Compliant
|
FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
|
