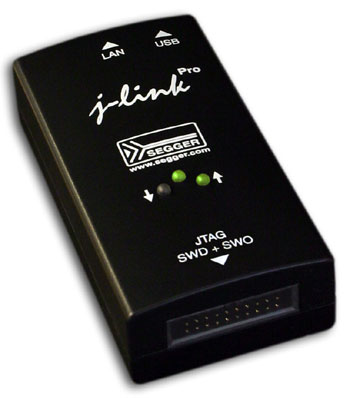

Ảnh sản phẩm thuộc về PNLAB

Thông tin chi tiết sản phẩm

Tên sản phẩm:

E-link tương đương JLINK V9



Tình trạng:

Liên hệ

Xuất xứ:

Đang cập nhật

Hãng sản xuất:


Mã sản phẩm:



600.000 1+ units
600.000 10+ units
600.000 100+ units

J-Link Features


  • The de-facto standard debug probe ()

  • Up to 3 MByte/s Download speed!
  • Intelligence in the emulator firmware
  • Compatible with all popular tool chains
  • Support for multi core debugging
  • Supports an unlimited numer of software breakpoints in flash memory
  • Setting breakpoints in external flash memory of Cortex-M systems is possible with
    J-Link's Unlimited Flash Breakpoints technology only!
  • Cross platform support (Microsoft Windows, Linux, Mac OS X)
  • Supports concurrent access to CPU by multiple applications
  • Remote Server included. Allows using J-Link remotely via TCP/IP
  • All CPU families supported by the J-Link software can be used without additional license
  • No charges for software updates
  • RDI / RDDI interface DLL available
  • Software comes with free GDBServer, allowing usage of J-Link with all GDB-based debug solutions
  • Production flash programming software (J-Flash) available
  • Debugger independent flash download (internal flash, CFI flash, SPIFI flash)
  • Supports CPU/MCU internal trace buffer (ETB, MTB, ...)
  • Supports ETM tracing (J-Trace Cortex-M, J-Trace ARM)
  • Can be connected to the host PC via USB or Ethernet (J-Link PRO)
  • No power supply required, powered through USB
  • Wide target voltage range: 1.2V - 3.3V, 5V tolerant
  • All JTAG signals can be monitored, target voltage can be measured
  • Target power supply: J-Link can supply up to 300 mA to target with overload protection
  • An SDK is available (Allows customized use of J-Link)
  • Various target adapters available, including optical isolation adapter
  • Supports multiple target interfaces (JTAG, SWD, FINE, SPD, ...)
